Product detail

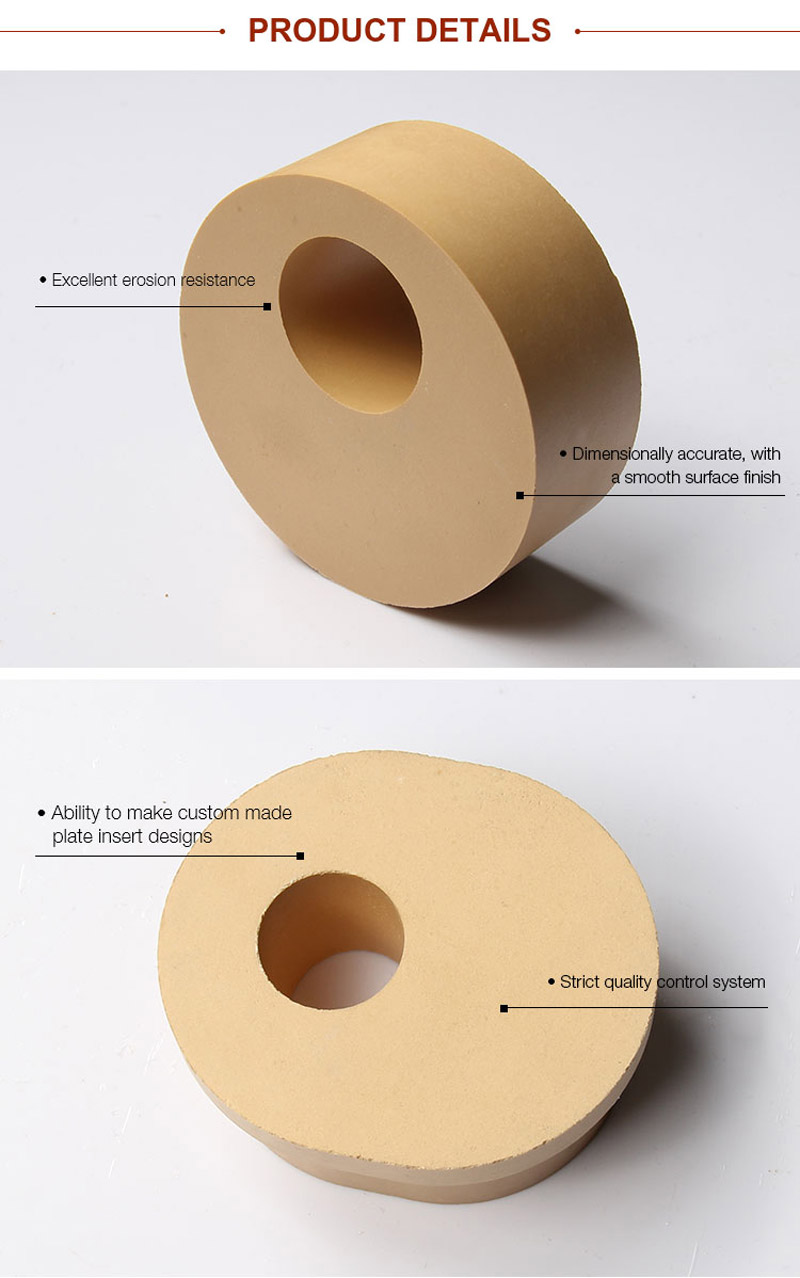

Zirconia Sliding Gate Plate Ladle Refractories
When the plate become worn, the worn material can be removed and a high density Zirconia Plate insert can be cemented/cast in its place, therefore extending the life of the sliding gate plate. Hongtai offers two material grades for sliding gate plate inserts:
• HTSGL – High hot strength with increased thermal shock properties.
• HTSGH – High strength, abrasion resistant with erosion resistant properties
Product Parameters
| Product Data | HTSGL | HTSGH |
| Physical Properties | ||
| Apparent Porosity (%) | 10-11 | 8-10 |
| Bulk Density (g/cm3) | >=5.0 | >=5.2 |
| Chemical Analysis(%) | ||
| ZrO2 + HfO2 | >=95.0 | >=95.5 |
| SiO2 | 0.23 | 0.23 |
| TiO2 | 0.2 | 0.2 |
| Fe2O3 | 0.05 | 0.05 |
| Al2O3 | 0.42 | 0.42 |
| CaO | 0.15 | 0.15 |
| MgO | 2.4 | 2.4 |
| Na2O | 0.01 | 0.01 |
