Product detail
Ladle

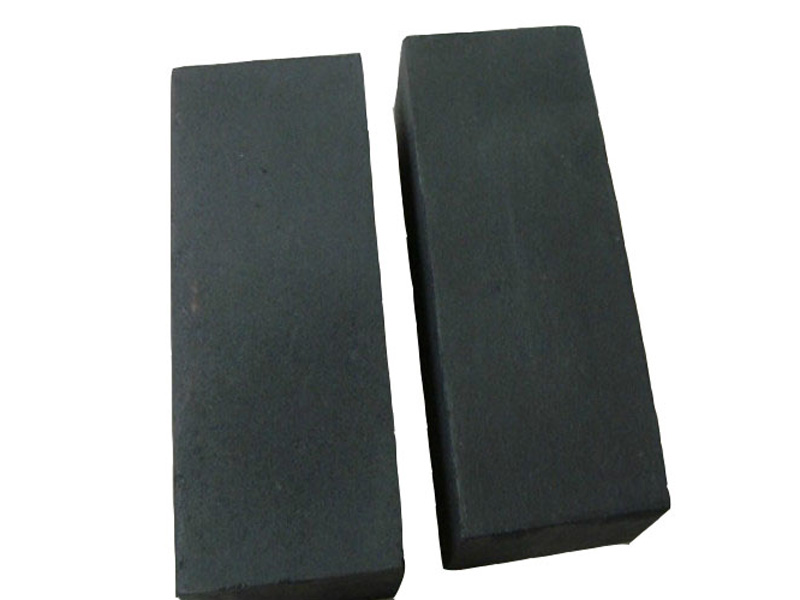

Fused magnesia and flake graphite are the main raw materials for these bricks, this series of products is produced by pressing and low temperature sintering. These bricks are mainly used for smelting low-carbon steel and ultra-low carbon steel in carbon-free ladles and slag line parts of low-carbon ladles.They have the characteristics of high strength, good corrosion resistance and excellent thermal shock resistance.
Product Parameters
Fused magnesia and flake graphite are the main raw materials for these bricks, this series of products is produced by pressing and low temperature sintering. These bricks are mainly used for smelting low-carbon steel and ultra-low carbon steel in carbon-free ladles and slag line parts of low-carbon ladles.They have the characteristics of high strength, good corrosion resistance and excellent thermal shock resistance.
| Item 项目 |
Low carbon MgO-C Bricks 低碳镁碳砖 |
||||||
| MT-5A | MT-5B | MT-5C | MT-3A | MT-3B | MT-3C | ||
| MgO % | ≥ | 85 | 84 | 82 | 86 | 85 | 83 |
| C % | ≤ | 5 | 5 | 5 | 3 | 3 | 3 |
| Apparent Porosity 显气孔率 % |
≤ | 5 | 6 | 7 | 8 | 9 | 10 |
| Bulk density 体积密度 （g/cm3） |
≥ | 3.00 | 2.98 | 2.96 | 3.03 | 3.00 | 2.98 |
| Cold Crushing Strength 常温耐压强度 (Mpa) |
≥ | 40 | 40 | 35 | 40 | 40 | 35 |
| Application 应用 |
The slag line and sidewall of ladle working lining for low carbon steel production 钢包渣线、包壁工作层,用于冶炼低碳钢。 |
||||||
Fused alumina, magnesia alumina spinel, fused magnesia and graphite are the main raw materials for these bricks, this series of products is produced by pressing and low temperature sintering. and mainly used at the bottom and sidewall zones for low and ultra-low carbon steel production.They have the characteristics of high strength, good corrosion and thermal shock resistance.
| Item 项目 |
Low carbon Al2O3-Spinel Bricks 低碳刚玉尖晶石砖系列 |
|||
| LMT-80 | LMT-85 | LMT-88 | ||
| Al2O3% | ≥ | 80 | 85 | 88 |
| MgO % | ≥ | 5 | 4 | 3 |
| C % | ≤ | 5 | 5 | 5 |
| Apparent Porosity 显气孔率 % |
≤ | 8 | 8 | 8 |
| Bulk density 体积密度 （g/cm3） |
≥ | 2.9 | 2.95 | 3 |
| Cold Crushing Strength 常温耐压强度 (Mpa) |
≥ | 35 | 40 | 45 |
| Application 应用 |
The sidewall and bottom of ladle working lining for low carbon steel production. 钢包包壁、包底工作层,用于冶炼低碳钢。 |
|||
Corundum, magnesia alumina spinel, high grade bauxite, high quality fused magnesia and flake graphite are the main raw materials for these bricks, the binder is phenolic resin, produced by pressing ,and mainly used in the bottom and sidewall of ladle.They have the characteristics of good corrosion and erosion resistance,and excellent antispalling performance.
| Item 项目 |
Al2O3-MgO-C Bricks 铝镁碳砖系列 |
||||
| AMC-60 | AMC-65A | AMC-65B | AMC-70A | ||
| Al2O3% | ≥ | 60 | 65 | 65 | 70 |
| MgO % | ≥ | 16 | 12 | 12 | 10 |
| C % | ≥ | 8 | 8 | 8 | 8 |
| Apparent Porosity 显气孔率 % |
≤ | 8 | 8 | 8 | 8 |
| Bulk density 体积密度 （g/cm3） |
≥ | 2.9 | 2.95 | 2.9 | 3 |
| Cold Crushing Strength 常温耐压强度 (Mpa) |
≥ | 40 | 40 | 40 | 40 |
| Application 应用 |
The sidewall and bottom of ladle working lining for ordinary carbon steel production. 钢包包壁、包底工作层,用于冶炼普碳钢。 |
||||

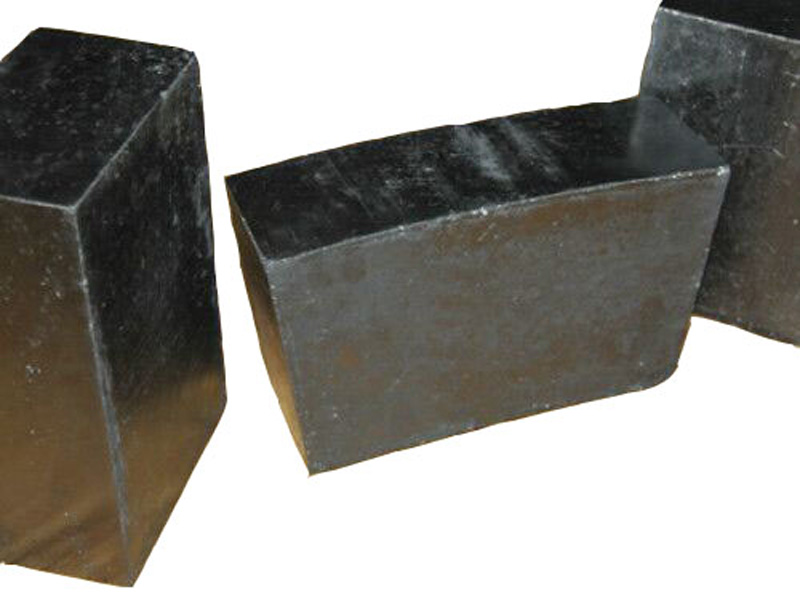

This series of MgO-C bricks are made from fused magnesia, fused magnesia with large crystal structure and flake graphite, this series of products is produced by pressing and low temperature sintering. The bricks are generally used in slag zone of ladle, they have the characteristics of good corrosion and erosion resistance, proper antispalling performance.
| Item 项目 |
MgO-C Bricks 镁碳砖系列 |
||||||||||||
| MT-8 | MT-10 | MT-12 | MT-14 | ||||||||||
| A | B | C | A | B | C | A | B | C | A | B | C | ||
| MgO % | ≥ | 82 | 82 | 78 | 80 | 78 | 76 | 78 | 76 | 74 | 76 | 74 | 72 |
| C % | ≥ | 8 | 8 | 8 | 10 | 10 | 10 | 12 | 12 | 12 | 14 | 14 | 14 |
| Apparent Porosity 显气孔率 % |
≤ | 5 | 6 | 7 | 4 | 5 | 6 | 4 | 5 | 6 | 4 | 5 | 6 |
| Bulk density 体积密度 （g/cm3） |
≥ | 3.00 | 2.95 | 2.95 | 3.00 | 2.95 | 2.95 | 2.98 | 2.96 | 2.95 | 2.98 | 2.93 | 2.9 |
| Cold Crushing Strength 常温耐压强度 (Mpa) |
≥ | 40 | 35 | 30 | 40 | 35 | 30 | 40 | 35 | 30 | 40 | 35 | 30 |
| High Temperature Flexural Strength 高温抗折强度(Mpa) (1450℃, 0.5h) |
≥ | 6 | 5 | 4 | 8 | 7 | 6 | 8 | 7 | 6 | 12 | 10 | 8 |
| Application 应用 |
The slag line, sidewall and bottom of ladle working lining. 钢包包壁、包底和渣线部位。 | ||||||||||||
This series of bricks are made from high quality fused magnesia, fused corundum and flake graphite,the binder is phenolic resin. The products are mainly used in the bottom and sidewall of ladle to achieve better corrosion and erosion resistance.
| Item 项目 |
MgO-Al2O3-C Bricks 镁铝碳砖系列 |
||||||
| MAC-50 | MAC-60 | MAC-65 | MAC-70 | MAC-75 | MAC-80 | ||
| MgO % | ≥ | 50 | 60 | 65 | 70 | 75 | 80 |
| Al2O3 % | ≥ | 30 | 20 | 15 | 10 | 8 | 4 |
| C % | ≥ | 8 | 8 | 8 | 8 | 8 | 8 |
| Apparent Porosity 显气孔率 % |
≤ | 8 | 8 | 8 | 8 | 8 | 8 |
| Bulk density 体积密度 （g/cm3） |
≥ | 2.85 | 2.9 | 2.9 | 2.9 | 2.9 | 2.95 |
| Cold Crushing Strength 常温耐压强度 (Mpa) |
≥ | 35 | 40 | 40 | 40 | 40 | 45 |
| Application 应用 |
The sidewall and bottom of ladle working lining for ordinary carbon steel production. 钢包包壁、包底工作层,用于冶炼普碳钢。 |
||||||
This series of castables are composed by corundum, high-grade bauxite,superfine powders and other ingredients. It has the characteristics of easy installation, high strength, excellent volume stability and long-life span. These products can also be used for the permanent lining of ladle of all capacities.
| Item 项目 |
Monolithic castables for safety lining 永久层整体浇注料 |
||||||
| JZ-65 | JZ-70 | JZ-75 | JZ-80 | JZ-85 | |||
| Al2O3, % | ≥ | 65 | 70 | 78 | 80 | 85 | |
| Bulk density 体积密度（g/cm3） |
≥ | 2.4 | 2.5 | 2.6 | 2.7 | 2.85 | |
| Cold Crushing Strength 常温耐压强度(Mpa) |
(110℃, 24h) | ≥ | 35 | 40 | 40 | 40 | 45 |
| (1500℃, 3h) | ≥ | 45 | 45 | 50 | 55 | 60 | |
| Reheating Linear Change Rate 加热永久线变化率 % |
(1500℃, 3h) | 士 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Water addition ratio 施工加水量 % |
6-7 | 6-7 | 6-7 | 5-6 | 5-6 | ||
