Product detail
Fused Calcia Stabilized Zirconia

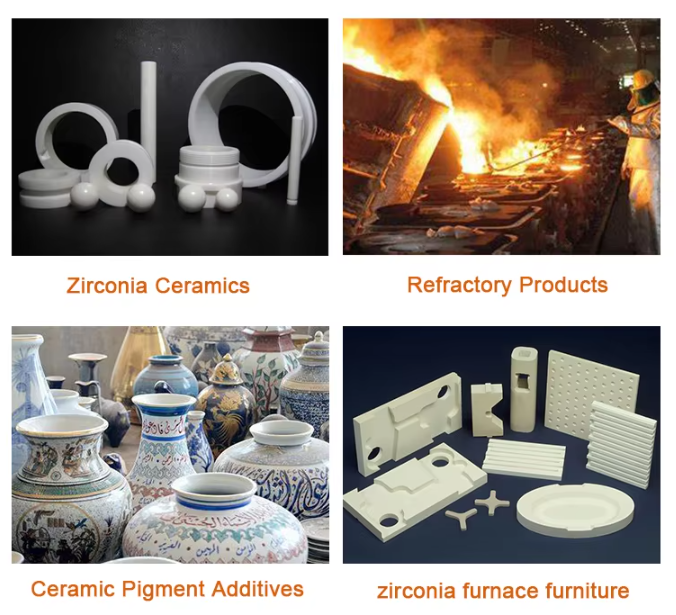

This material is made of various grades of zirconia, adding calcia as stabilizer, using our patent technique. It is used to produce all kinds of Zirconia ceramic and refractory products, such as refractory setter for electro-ceramic industry, sizing nozzles, sliding plates, submerged nozzles, zirconia hollow ball products, high quality zirconia furnace furniture, ect.

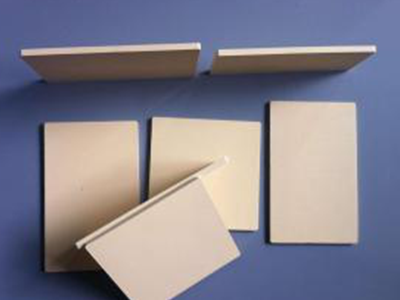

Setter plate
Product Parameters
| Brand | Chemical Composition（%） | Stabilization rate(g/cm3 ) | True density | Size | |||||
| ZrO2 | Al2O3 | SiO2 | CaO | Fe2O3 | TiO2 | ||||
| PCK-a | >=94 | <=0.4 | <=0.6 | 3.5-4.2 | <0.1 | <0.2 | ＞ 95 | >5.6 | Hollow Ball or Customized |
| PCK-b | >=93 | <=0.4 | <= 0.4 | 2.5-4.0 | <0.15 | <0.2 | 70-90 | >5.6 | Customized |
| PCD | >=94 | <=0.3 | <= 0.4 | 3.0-4.2 | <0.1 | <0.15 | 75-85 | >5.7 | Customized |
| PCD-C | >=95 | <=0.1 | <=0.2 | 3.0-4.2 | <0.1 | <0.1 | 75-85 | >5.8 | Customized |
| FCD | >=91 | <=0.2 | <= 0.4 | 7.0-7.8 | <0.1 | <0.2 | 100 | >5.9 | Customized |
