Product detail

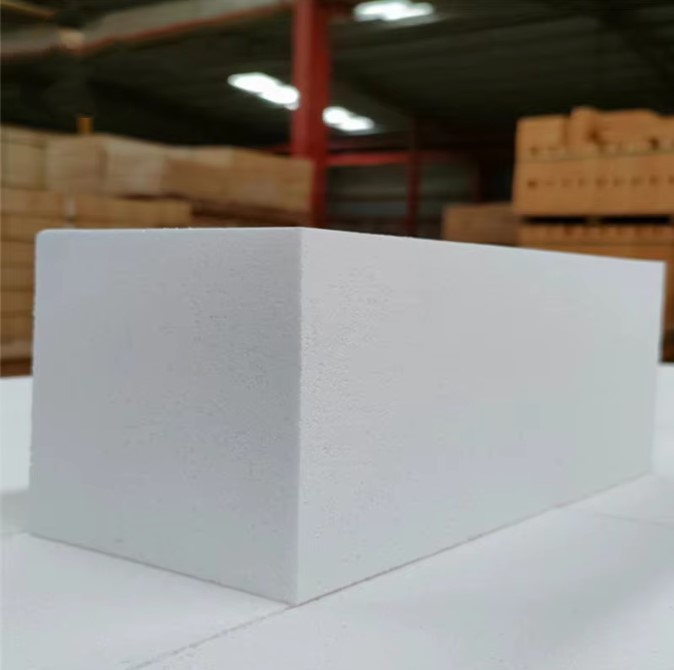

Alumina Bubble Brick
Main Composition: Al2O3
Application: Petrochemical industry, ceramic industry, etc
Size: 230*114*65mm or customized
Color: White
Refractoriness: ≥1800℃
Raw Material: Alumina bubble
Package: Cartons with export wooden pallets
Product Introduction
Alumina Bubble Brick is a brick made of alumina hollow spheres as the main raw material, high-performance alumina ultrafine powder as an additive, organic materials as a binder, and dried and formed.
Features
1.High Service Temperature.
2.High Purity.
3.Low Thermal Conductivity.
4.Low Bulk Density.
5.High Mechanical Strength.
Application
Alumina Bubble Brick can be used in high-temperature shaft kilns, shuttle kilns, induction furnaces, nitriding furnaces, etc., and also can be used for service linings in manufacturing high-purity quartz for the electronics industry such as ceramic tile linings in gas turbines and backup linings in reactors.

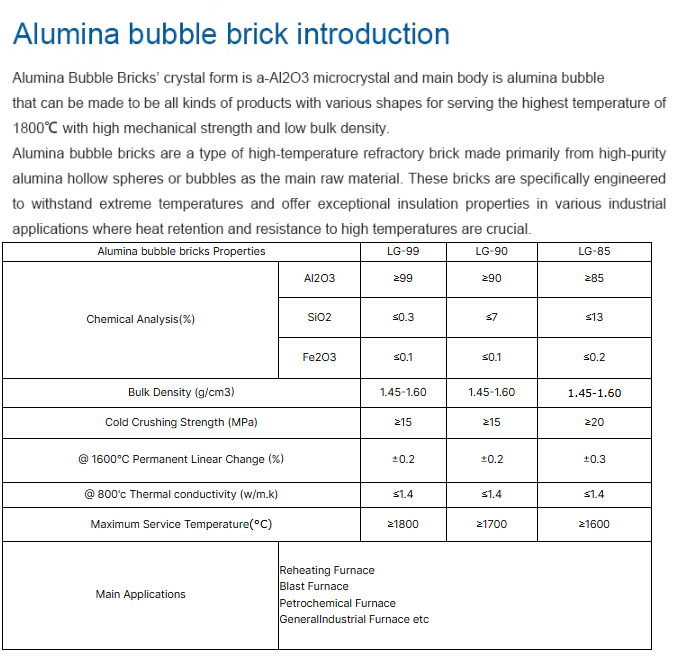

Product Parameters
| Item | Alumina Bubble Brick | ||
| CH-85 | CH-90 | CH-99 | |
| Al2O3(%) | ≥85 | ≥90 | ≥99 |
| SiO2(%) | ≤0.8 | ≤0.5 | ≤0.2 |
| Maximum Service Temperature( ℃) | 1680 | 1700 | 1800 |
| Bulk Density(g/cm3) | 1.4-1.7 | 1.4-1.7 | 1.4-1.7 |
| Cold Crushing Strength(Mpa) | ≥12 | ≥10 | ≥9 |
| Refractoriness Under Load (0.1Mpa, 0.6%) (℃) | ≥1650 | ≥1700 | ≥1700 |
| Thermal Conductivity ( hot surface 1000℃)(w/m.k) | ≤0.8 | ≤1.3 | ≤1.5 |
